2․2 Display Unit: Wide Screen Color Display

The TST TPMS includes a wide-screen color display unit‚ designed for clear visibility and user-friendly navigation․ The vibrant color screen provides real-time tire pressure and temperature data‚ along with customizable alerts․ The display supports monitoring of up to 22 tires‚ making it ideal for RVs‚ trailers‚ and commercial vehicles․ Intuitive buttons allow easy access to settings‚ alarms‚ and historical data․ The compact design ensures it fits seamlessly into any vehicle dashboard‚ offering a modern and functional interface for enhanced driver convenience and safety․

2;3 System Compatibility: Up to 22 Tires

The TST TPMS is designed to monitor up to 22 tires‚ making it highly versatile for various vehicle configurations․ This feature is particularly beneficial for RVs‚ trailers‚ and commercial trucks‚ which often have multiple axles․ The system supports flow-through‚ cap‚ and internal sensors‚ ensuring compatibility with different tire setups․ Its scalability allows users to monitor a single vehicle or multiple trailers‚ providing real-time data for enhanced safety and efficiency․ Whether you’re managing a small setup or a large fleet‚ the TST TPMS adapts seamlessly to meet your needs‚ offering reliable monitoring for up to 22 tires․

Installation and Setup

Ensure proper preparation‚ installation‚ and setup of the TST TPMS for optimal functionality․ Follow step-by-step instructions for sensor placement‚ display mounting‚ and system activation to guarantee accurate monitoring․

3․1 Preparing the System for Installation

Before installing the TST Tire Monitoring System‚ ensure all components are accounted for and in working condition․ Review the manual thoroughly to understand each part’s role․ Inflate tires to the recommended cold pressure and install batteries in sensors if required․ Ensure the display unit is fully charged and updated with the latest software․ Proper preparation guarantees a smooth installation process and optimal system performance․ Follow the manufacturer’s guidelines to avoid errors and ensure safety․

3․2 Installing the Sensors on the Tires

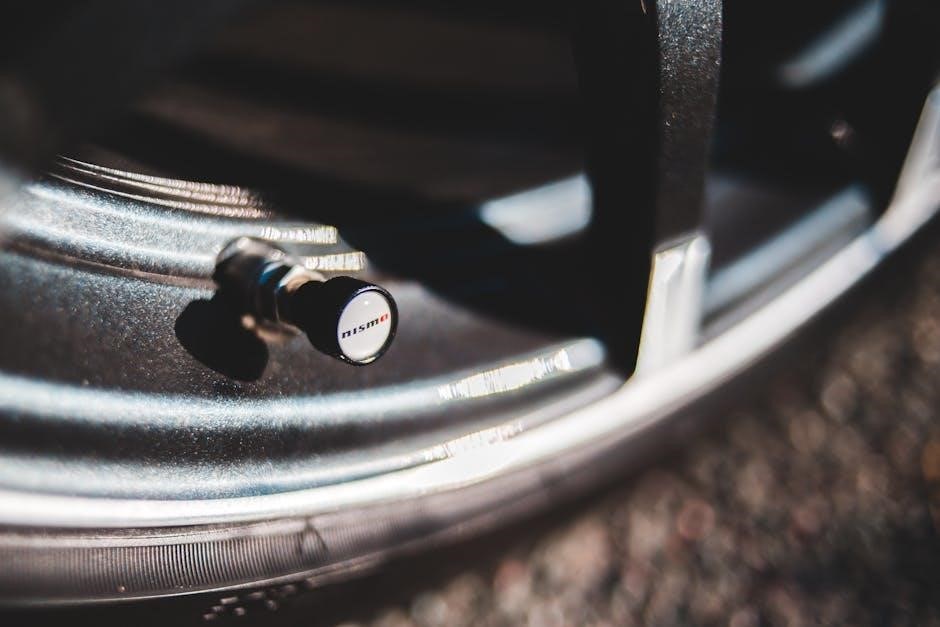

Begin by ensuring the tire valve stems are clean and free of debris․ For flow-through sensors‚ remove the valve cap and screw the sensor onto the stem‚ ensuring a tight seal․ For cap sensors‚ simply replace the existing valve cap with the sensor․ Tighten firmly to avoid leaks․ After installation‚ check for air leaks by applying soapy water or spraying with a leak detector․ Ensure proper seating and alignment to maintain accurate readings․ Once installed‚ proceed to pair the sensors with the display unit as outlined in the next section․

3․3 Mounting the Display Unit

To mount the display unit‚ choose a visible and accessible location on your dashboard or instrument panel․ Ensure the display is level and securely fastened using the provided mounting bracket or adhesive pad․ Avoid obstructing the driver’s view or essential controls․ Connect the power cable to a 12V or 24V power source‚ depending on your vehicle’s specifications․ Once mounted‚ test the display to ensure proper operation․ For RVs or larger vehicles‚ consider additional mounting options like suction cups or screws for a sturdy installation․ Ensure the display is tightly secured to prevent movement while driving․

Pairing and Coding Sensors

Pairing and coding sensors ensures your TST TPMS operates accurately․ Follow the manual’s steps to synchronize sensors with the display unit for reliable tire data monitoring․

4․1 Understanding Sensor Coding

Sensor coding is a critical step in setting up your TST TPMS․ Each sensor has a unique code that must be paired with the display unit to ensure accurate readings․ This process prevents signal interference and ensures that each tire’s data is correctly identified․ Coding is typically done during the initial setup and may need to be repeated if sensors are replaced or reinstalled․ The manual provides detailed instructions on how to code sensors using the display unit’s menu․ Proper coding ensures reliable tire pressure and temperature monitoring‚ which is essential for safety and system functionality․

4․2 Pairing Sensors with the Display Unit

Pairing sensors with the display unit is essential for accurate tire pressure and temperature monitoring․ Turn on the display unit and ensure it is in pairing mode․ Each sensor must be activated near the display to transmit its unique code․ Follow the on-screen instructions to confirm the pairing process․ Make sure to assign each sensor to the correct tire position to avoid data mix-ups․ Proper pairing ensures reliable communication between sensors and the display‚ providing accurate real-time readings․ Refer to the manual for detailed step-by-step instructions to complete the pairing process successfully․

Operating the TST TPMS

Learn how to operate your TST TPMS for real-time tire pressure and temperature monitoring․ The system offers a user-friendly interface for easy navigation and data monitoring․

5․1 Navigating the Display Menu

The TST TPMS display menu is designed for easy navigation․ Use the touch screen or buttons to access tire pressure and temperature data‚ alarms‚ and settings․ The menu includes options to monitor individual tires‚ adjust pressure thresholds‚ and view system status․ Navigate through the menu by tapping or pressing arrows․ The home screen displays real-time data for all tires․ Access settings to customize alarms and units․ Use the back button to return to previous screens․ Refer to the manual for detailed instructions on menu navigation and functionality․

5․2 Setting Tire Pressure and Temperature Alarms

Setting tire pressure and temperature alarms is crucial for maintaining safety and efficiency․ The TST TPMS allows you to customize alerts for pressure and temperature thresholds․ For pressure‚ set the high alarm 20-25% above the tire’s maximum cold PSI rating․ For temperature‚ set the alarm 5-10°F above the typical operating range․ Access the menu via the display unit‚ navigate to settings‚ and adjust the thresholds․ The system will trigger visual and audible alerts when exceedances occur․ Adjust settings as needed based on driving conditions and refer to the manual for detailed instructions;

5․3 Monitoring Real-Time Data

The TST TPMS provides real-time monitoring of tire pressure and temperature‚ ensuring optimal safety and performance․ The wide-screen color display updates data continuously‚ allowing you to view pressure (in PSI) and temperature (in °F) for each tire․ Navigate through individual tire data or view all tires simultaneously using the display controls․ Touch-screen models enable quick access to detailed graphs and historical data․ Customizable alerts notify you of pressure drops or temperature spikes․ Regular monitoring helps prevent tire damage‚ improves fuel efficiency‚ and enhances overall vehicle safety․ Refer to the manual for guidance on interpreting real-time data effectively․

Maintenance and Care

Regular maintenance ensures optimal performance of your TST TPMS․ Clean sensors‚ inspect for damage‚ and replace batteries as needed․ Refer to the manual for detailed procedures․

6․1 Cleaning and Inspecting Sensors

Regular cleaning and inspection of TST TPMS sensors are crucial for optimal performance․ Use a soft cloth and mild soap to wipe away dirt and debris․ Avoid harsh chemicals or abrasive materials that may damage the sensors․ Inspect sensors for physical damage‚ corrosion‚ or wear․ Ensure the valve stem is secure and properly sealed․ Clean the sensor threads before reinstalling to maintain a tight connection․ Refer to the manual for detailed cleaning instructions and troubleshooting tips․ Proper maintenance ensures accurate tire pressure and temperature readings․

6․2 Replacing Batteries in Flow-through Sensors

To replace batteries in flow-through sensors‚ turn off the TST TPMS system․ Use a 3/4″ wrench to remove the valve core and access the battery compartment․ Carefully pull out the old battery and insert the new one‚ ensuring the positive terminal faces upward․ Reassemble the sensor by tightening the valve core securely․ Turn the system back on and check for proper function․ Refer to the manual for specific instructions and battery recommendations․ Regular battery replacement ensures continuous monitoring of tire pressure and temperature․

6․3 Replacing Batteries in Cap Sensors

To replace batteries in cap sensors‚ first‚ ensure the TST TPMS system is turned off․ Remove the cap by unscrewing it from the valve stem․ Gently pull out the battery holder and replace the old CR1632 battery with a new one‚ ensuring proper orientation․ Reinsert the battery holder and screw the cap back tightly․ Turn the system on and verify the sensor is transmitting data․ Regular battery replacement ensures uninterrupted tire pressure monitoring․ Always use recommended battery types for optimal performance․

Troubleshooting Common Issues

Troubleshooting common issues with your TST TPMS ensures optimal performance․ Check sensor connections‚ verify battery life‚ and reset the system if signal loss or inaccurate readings occur․

7․1 Sensor Signal Loss or Weak Signal

Sensor signal loss or weak signal can occur due to low battery strength‚ physical obstructions‚ or sensor damage․ Ensure sensors are properly installed and codes are correctly paired with the display unit․ Check for obstructions like metal rims or tire liners that may block signals․ Verify battery levels in flow-through and cap sensors‚ replacing them if necessary․ If issues persist‚ restart the system or consult the manual for further troubleshooting steps․

7․2 Incorrect Tire Pressure or Temperature Readings

Incorrect tire pressure or temperature readings can occur due to sensor misplacement‚ faulty calibration‚ or environmental interference․ Ensure sensors are securely attached to the valve stems and properly coded to the display unit․ Check for obstructions or extreme temperatures that may affect accuracy․ Recalibrate the system if necessary‚ following the manual’s instructions․ If issues persist‚ inspect sensors for damage or corrosion and replace them as needed․ Always refer to the manual for specific recalibration and troubleshooting procedures․

7․3 Display Unit Malfunction

If the display unit malfunctions‚ check the power source and ensure it is properly connected․ Restart the system to resolve any software glitches․ If the issue persists‚ inspect the display for physical damage or loose connections․ Ensure all sensors are paired correctly and transmitting data․ If the display still fails to function‚ contact TST customer support for assistance or visit an authorized dealer․ Refer to the manual for specific troubleshooting steps and maintenance tips to restore functionality․

Customer Support and Resources

For assistance‚ contact TST support via email or visit their website․ Explore online manuals‚ guides‚ and forums for troubleshooting․ Authorized dealers offer expert help and replacements․

8․1 Contacting TST Customer Support

For assistance with your TST Tire Pressure Monitoring System‚ contact customer support via email at support@TSTtruck․com or call 770․889․9102․ Visit their website at www․TSTtruck․com for resources․ Representatives are available to address troubleshooting‚ repairs‚ and general inquiries․ Ensure to have your system model and purchase details ready for efficient support․ Additionally‚ authorized dealers can provide hands-on assistance and genuine replacement parts․ For quick solutions‚ refer to online manuals or forums where experts and users share tips and experiences․

8․2 Accessing Online Manuals and Guides

Access comprehensive online resources for your TST Tire Monitoring System through the official TST website․ Download PDF manuals‚ such as the TST TM-507RV User Manual‚ for detailed instructions on system operation‚ installation‚ and troubleshooting․ Additional guides‚ including installation procedures and compatibility charts‚ are available to ensure optimal use of your TPMS․ Visit www․TSTtruck․com to explore these resources and stay updated with the latest system enhancements and user tips․

8․3 Finding Authorized TST Dealers

To ensure authenticity and proper support‚ purchase your TST Tire Monitoring System from authorized dealers․ Visit the official TST website at www․TSTtruck․com for a dealer locator tool․ Contact TST customer support via email at support@TSTtruck․com or call them directly for assistance․ Authorized dealers provide genuine products‚ expert installation‚ and reliable after-sales service․ For additional convenience‚ you can also check with RV communities like iRV2․com or TechnoRV․com for trusted recommendations․

Warranty and Service Information

Your TST Tire Monitoring System is backed by a comprehensive warranty․ The system is covered for two years from the date of purchase‚ ensuring reliable performance and support․
